It is simple to assemble your Smart ZDrive MAX

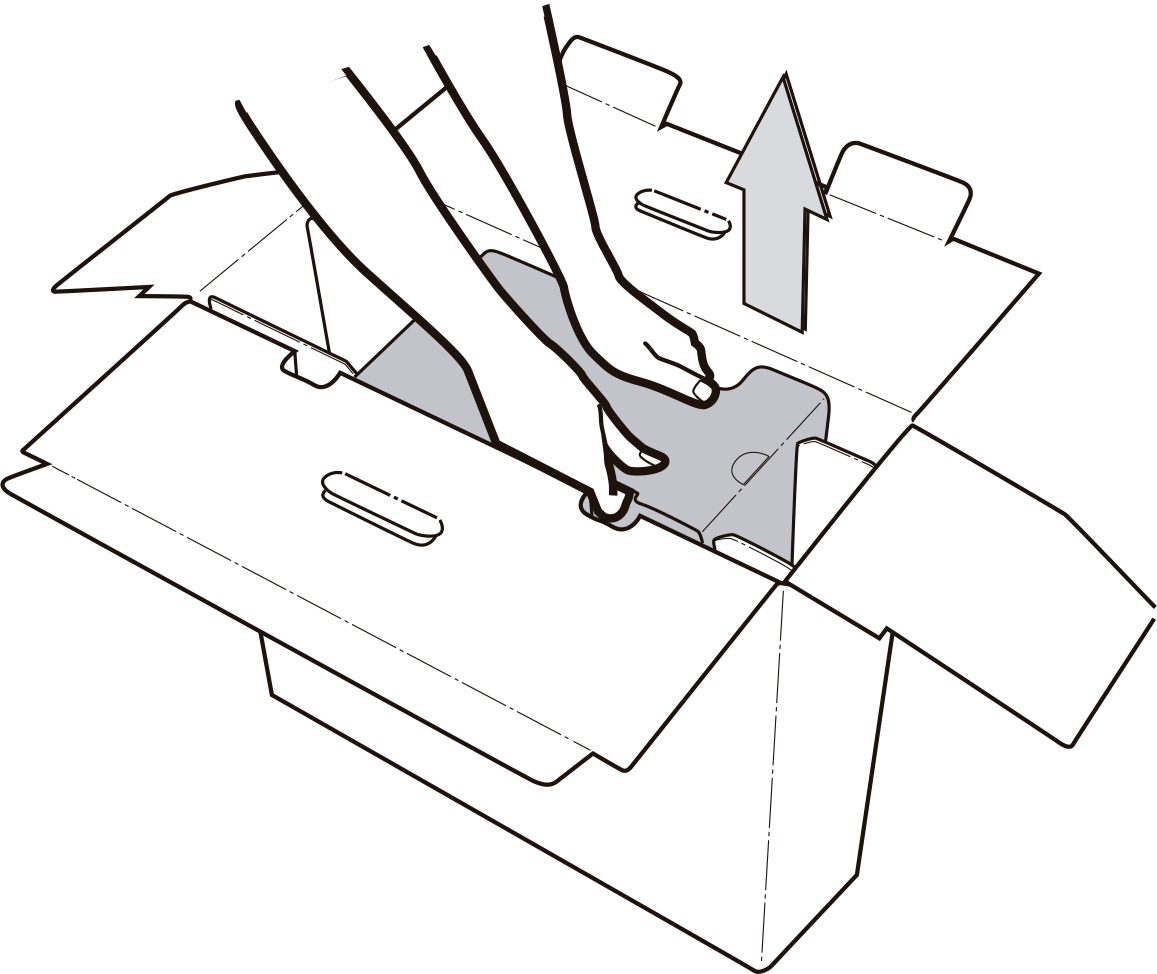

First, open the box of your Smart ZDrive MAX and remove its components.
After removing all the components, and making sure they are all removed, follow the steps described below:
The described assembly refers to the MAX model. If you have the previous one, you can find it at the following link => ZDrive.

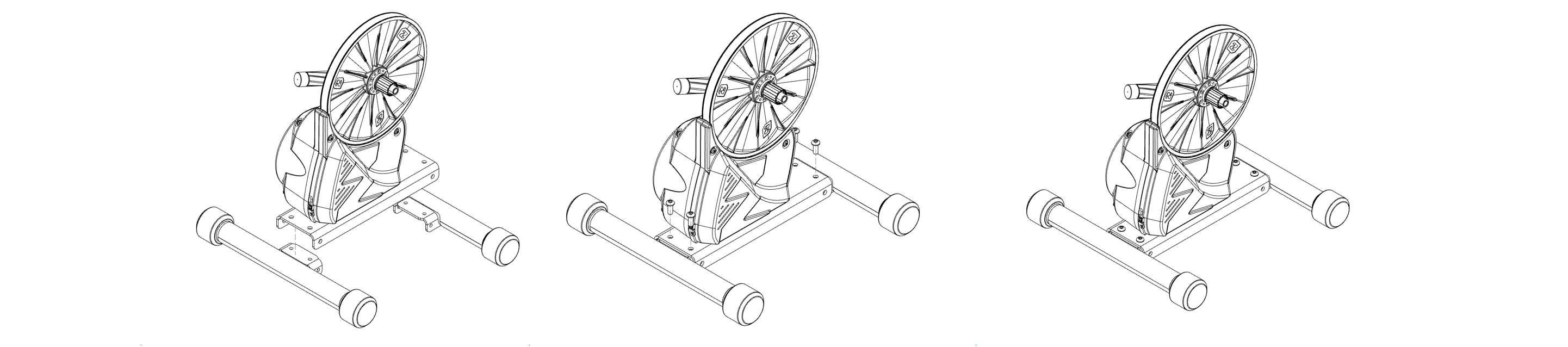

700C and 26 "/ 27.5" Wheel Mounting

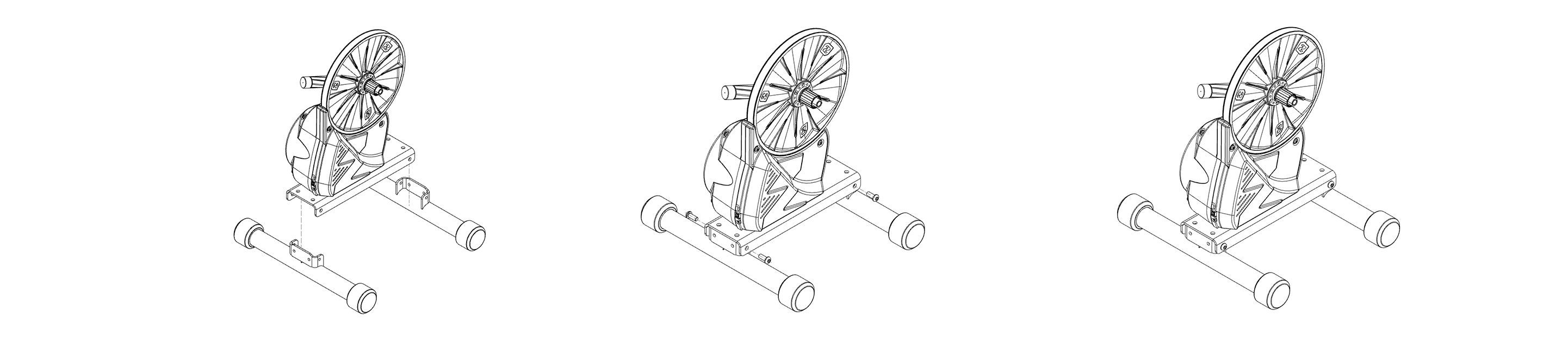

29" Wheel Mounting

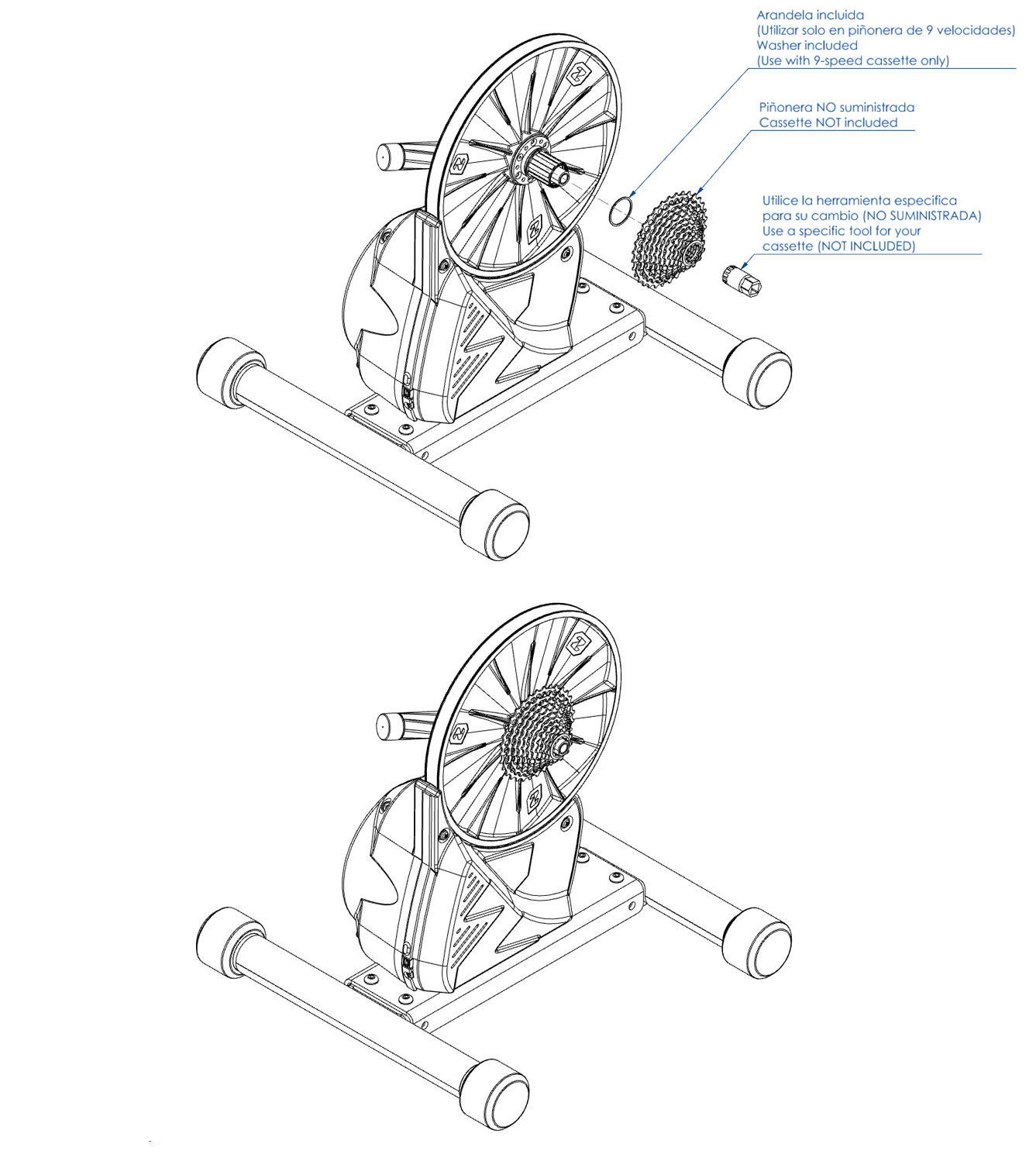

Cassette Installation
*Once you gear the chain on the cassette installed on your ZDrive, you will probably have to adjust the gear change of your bike.
Settings according to closure and width

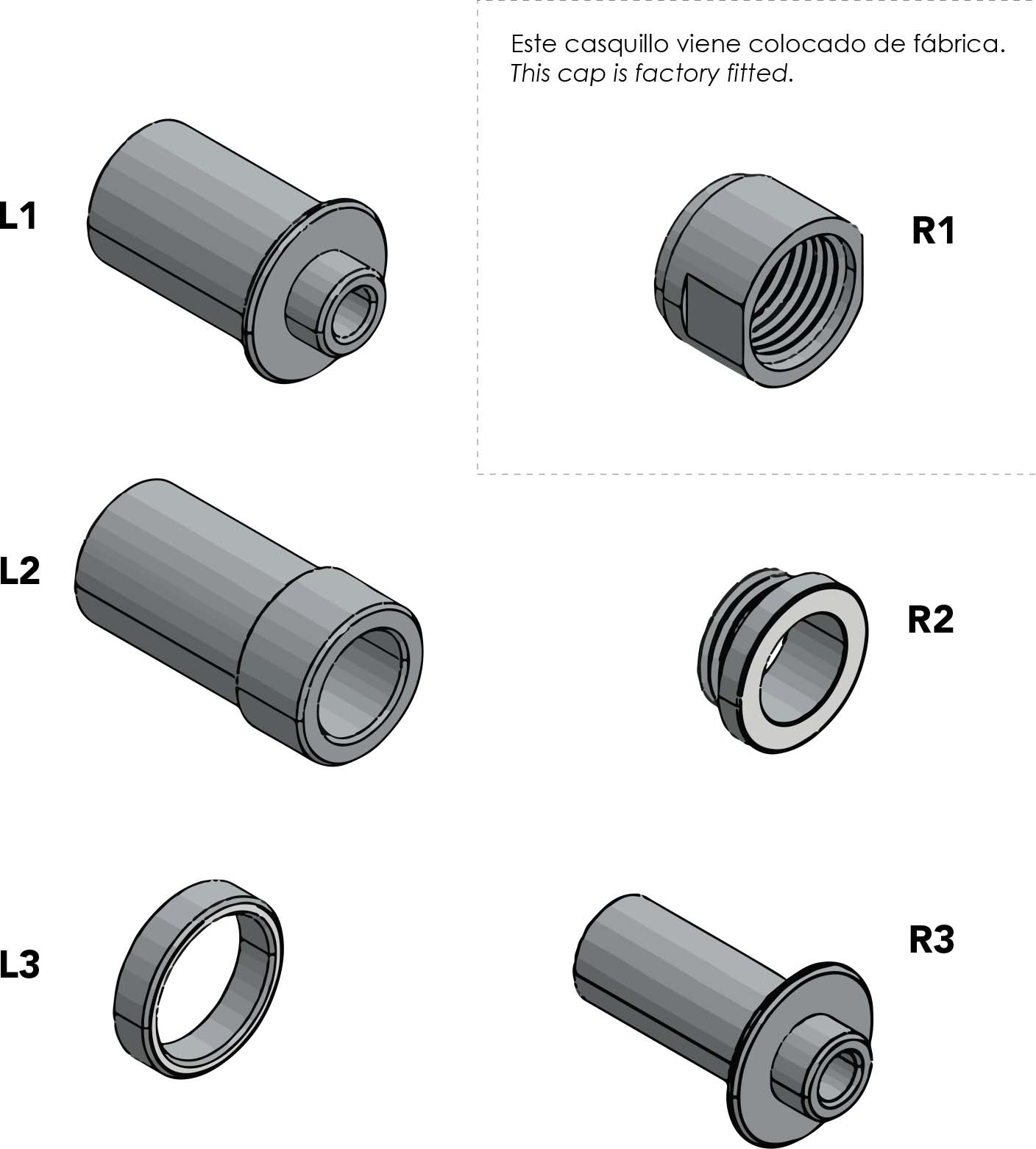

See the following configuration if the ZDrive includes 4 caps instead of 5.
A. 9mm axle quick release and 130mm wide setting. L1 // (R1)+R3

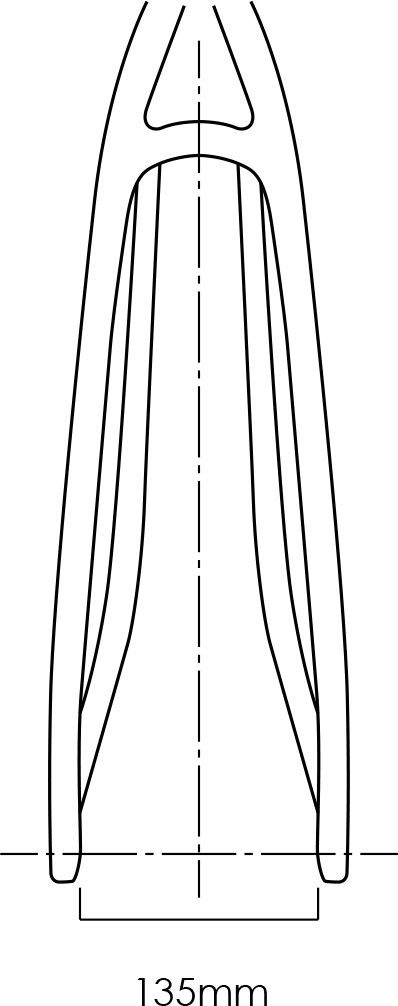

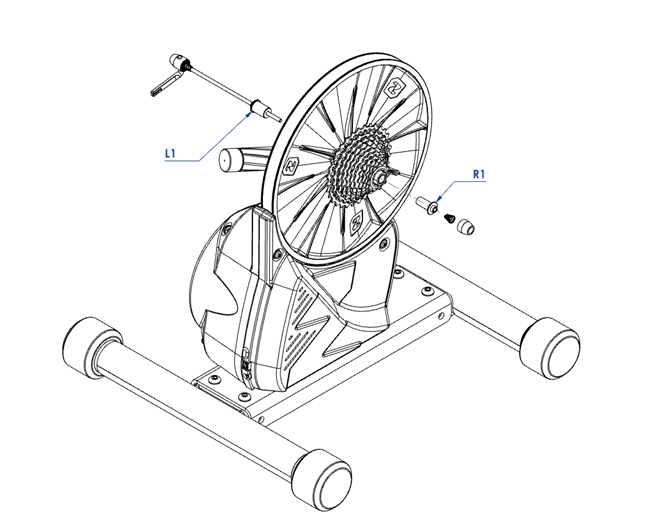

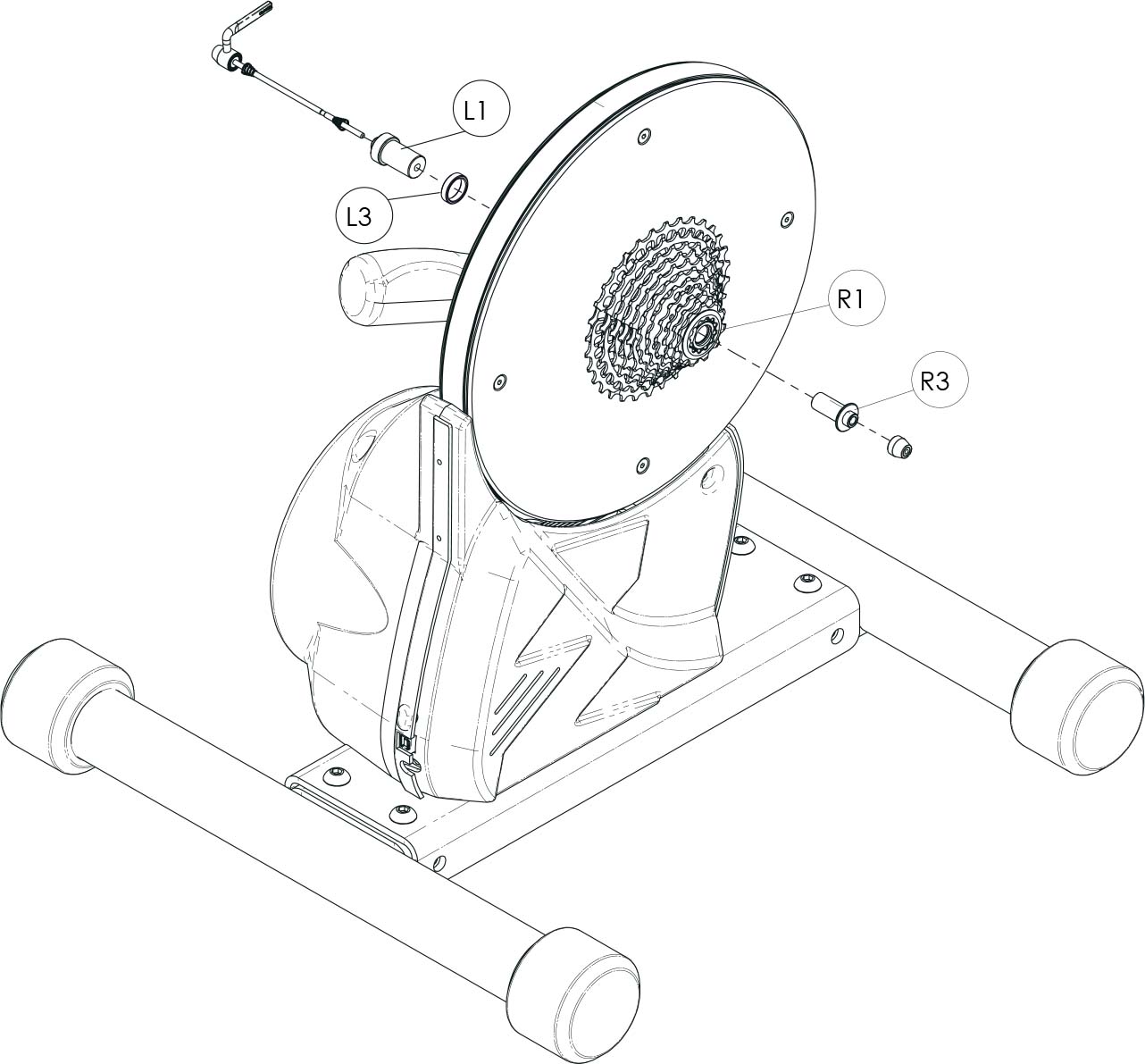

B. 9mm axle quick release and 135mm wide setting. L1+L3 // (R1)+R3

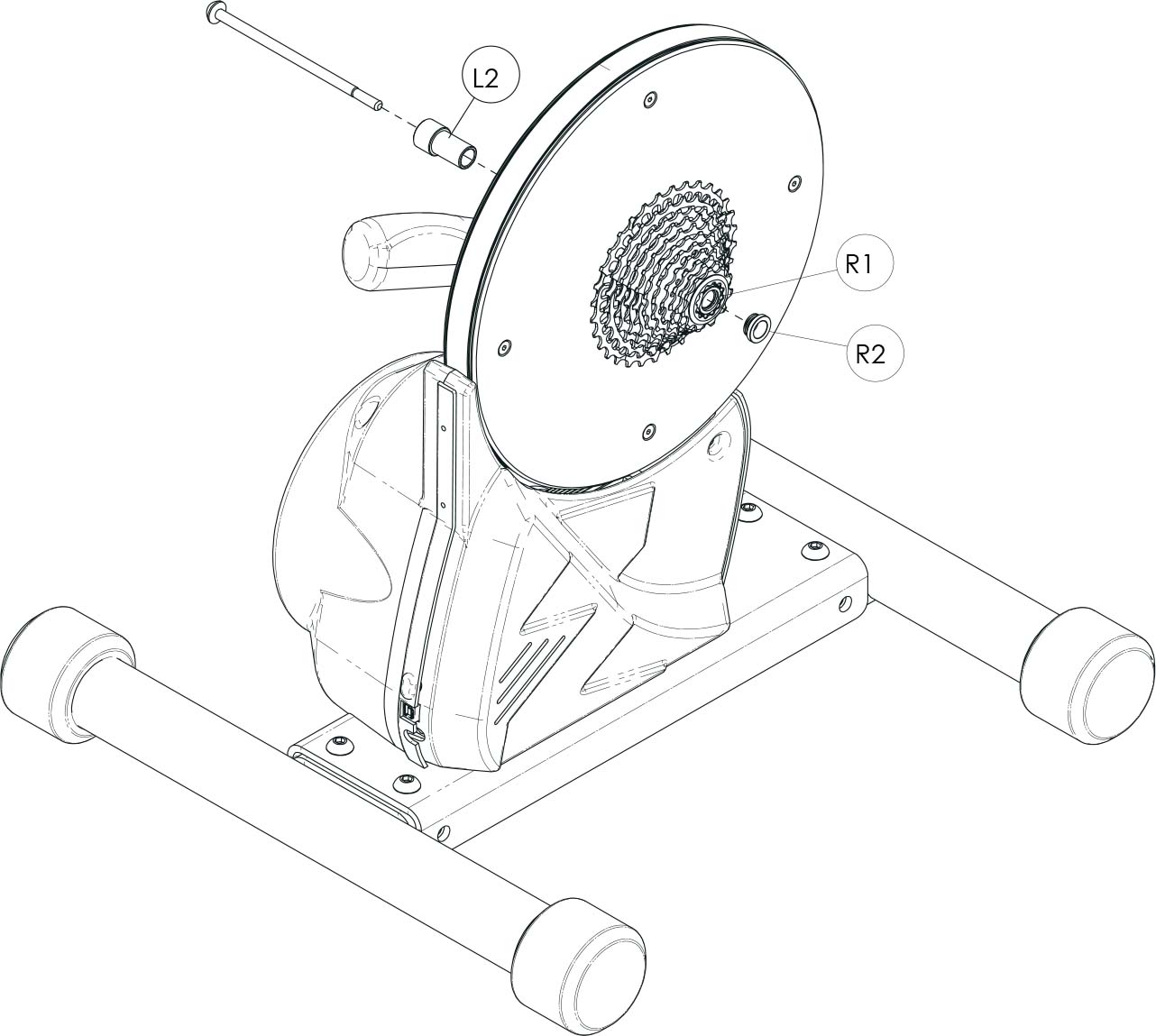

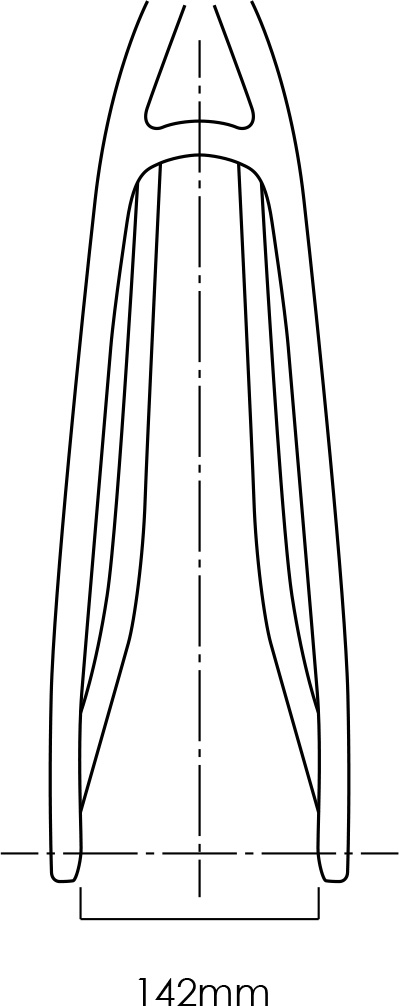

C. 12mm axle quick release and 142mm wide setting. L2 // (R1)+R2

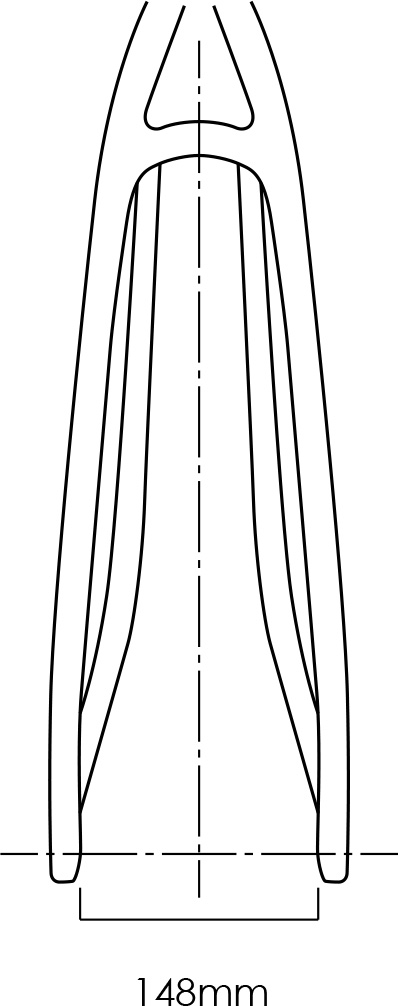

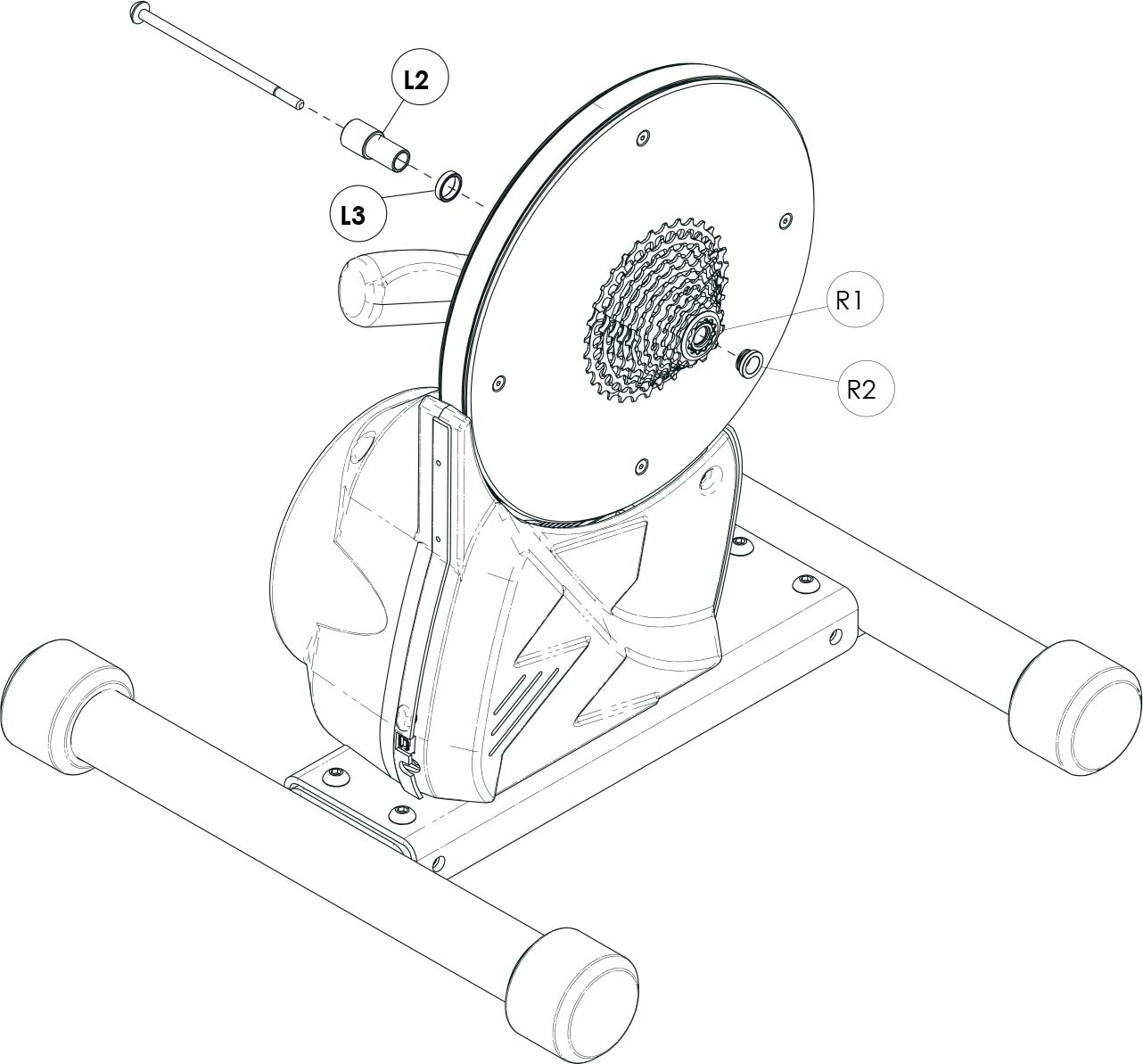

D. 12mm axle quick release and 148mm wide setting. L2+L3 // (R1)+R2
Settings according to closure and width

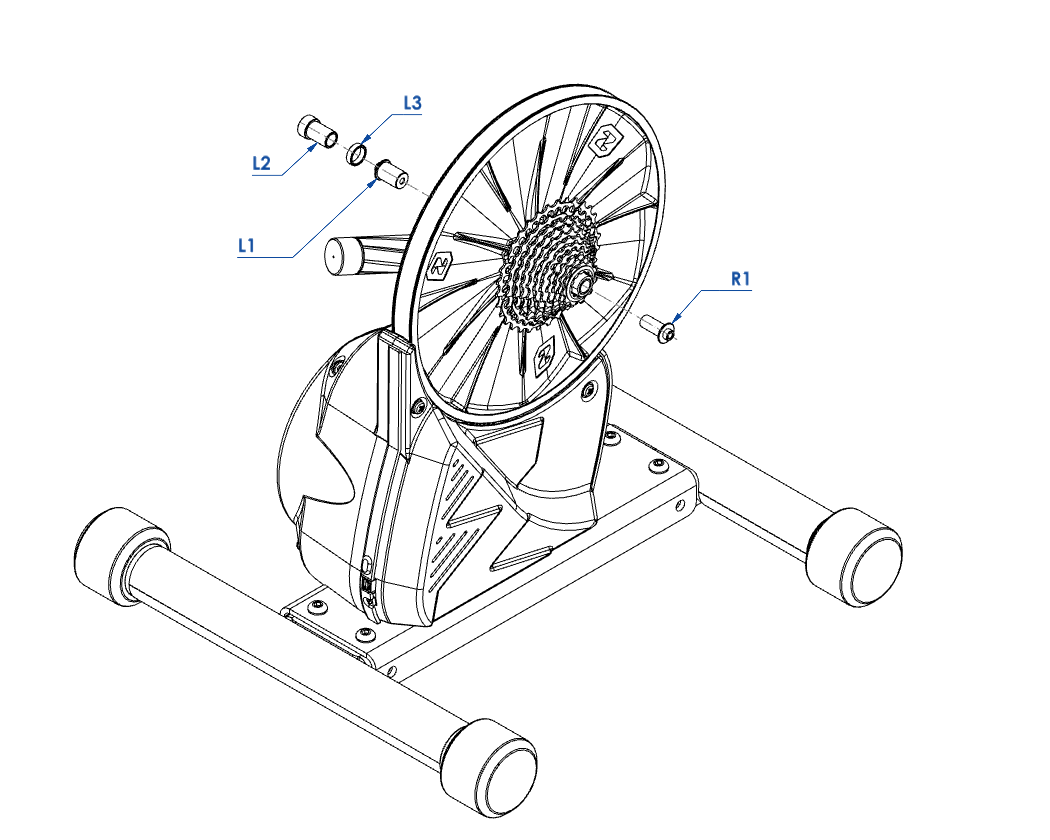

See the following configuration if the ZDrive includes 5 caps instead of 4.

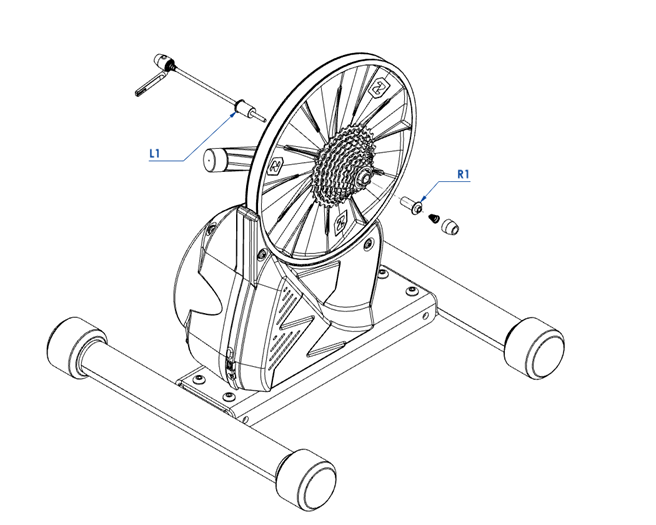

A. 9mm axle quick release and 130mm wide setting. L1 // R1
B. 9mm axle quick release and 135mm wide setting. L1 // R1
C. 12mm through-shaft and 135mm wide setting.

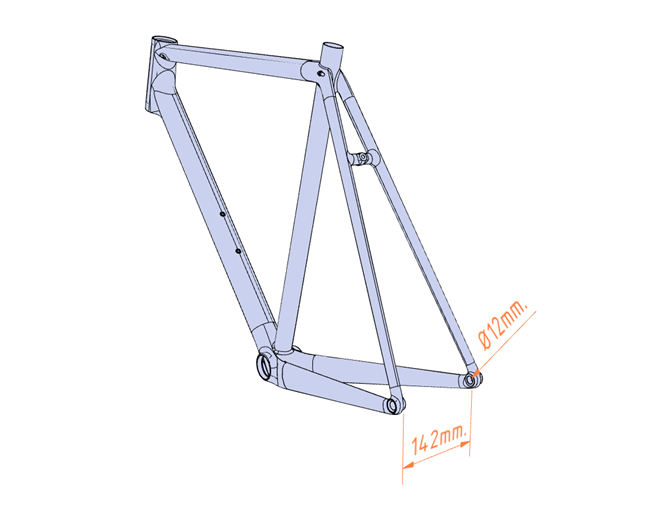

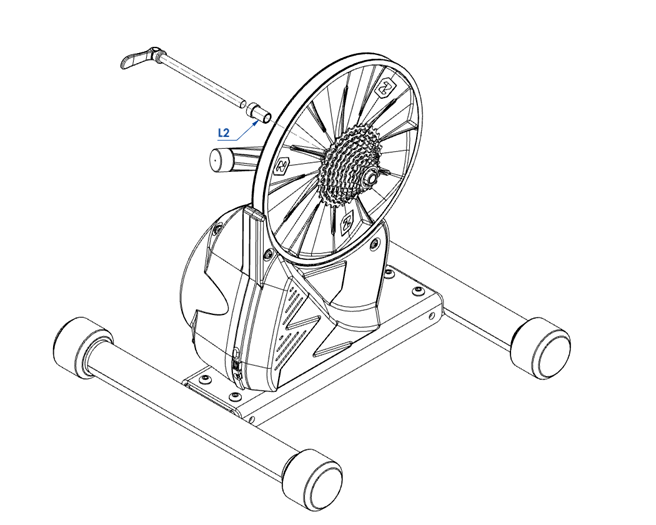

D. 12mm through-shaft and 142mm wide setting L2

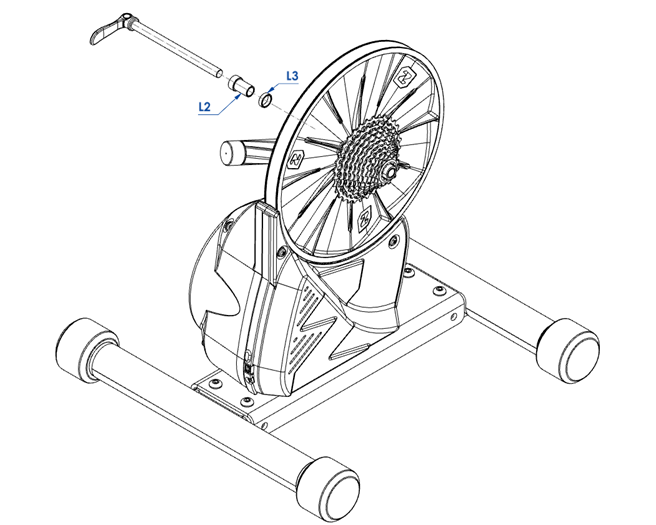

E. 12mm through-shaft and 148mm wide setting mm. L2 + L3
