The ZDrive model has been discontinued. The current model is the ZDrive MAX.

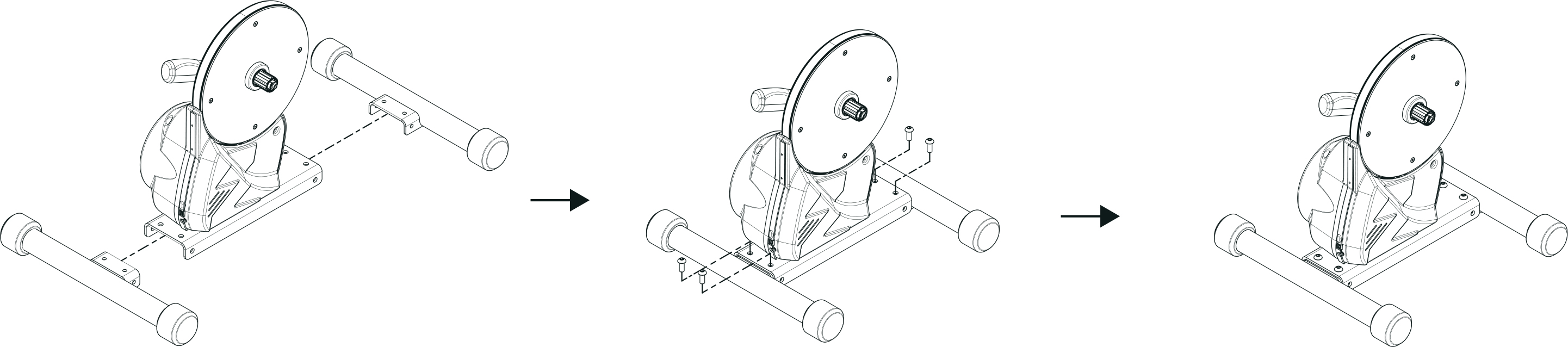

It is simple to assemble your Smart ZDrive.

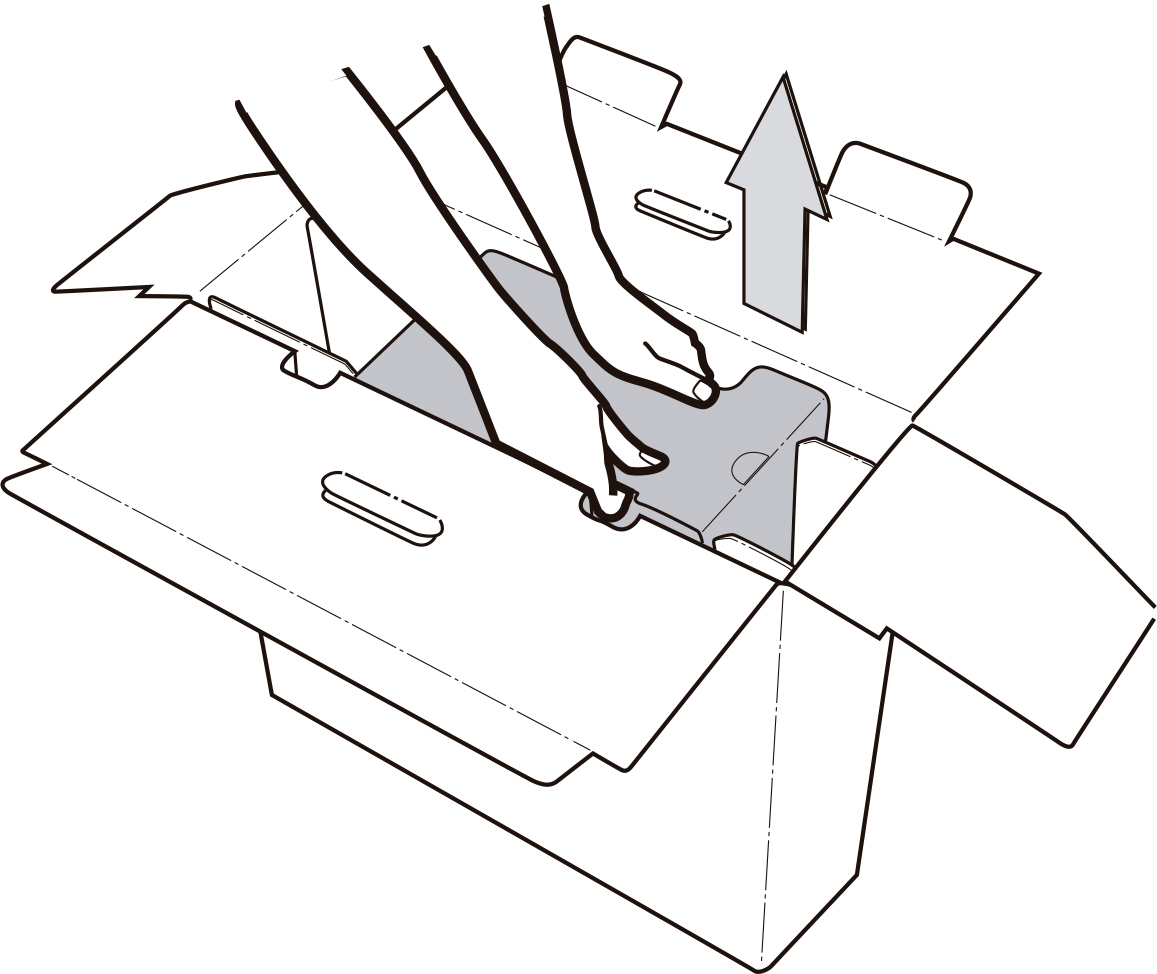

First, open the box of your Smart ZDrive and remove its components.
After removing all the components, and making sure they are all removed, follow the steps described below:

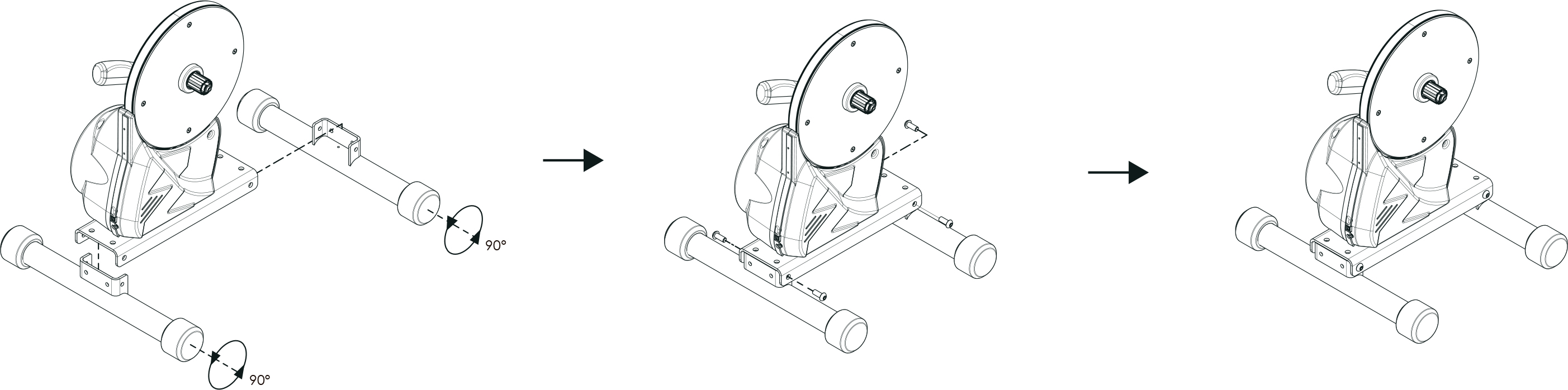

700C and 26 "/ 27.5" Wheel Mounting
29 " Wheel Mounting

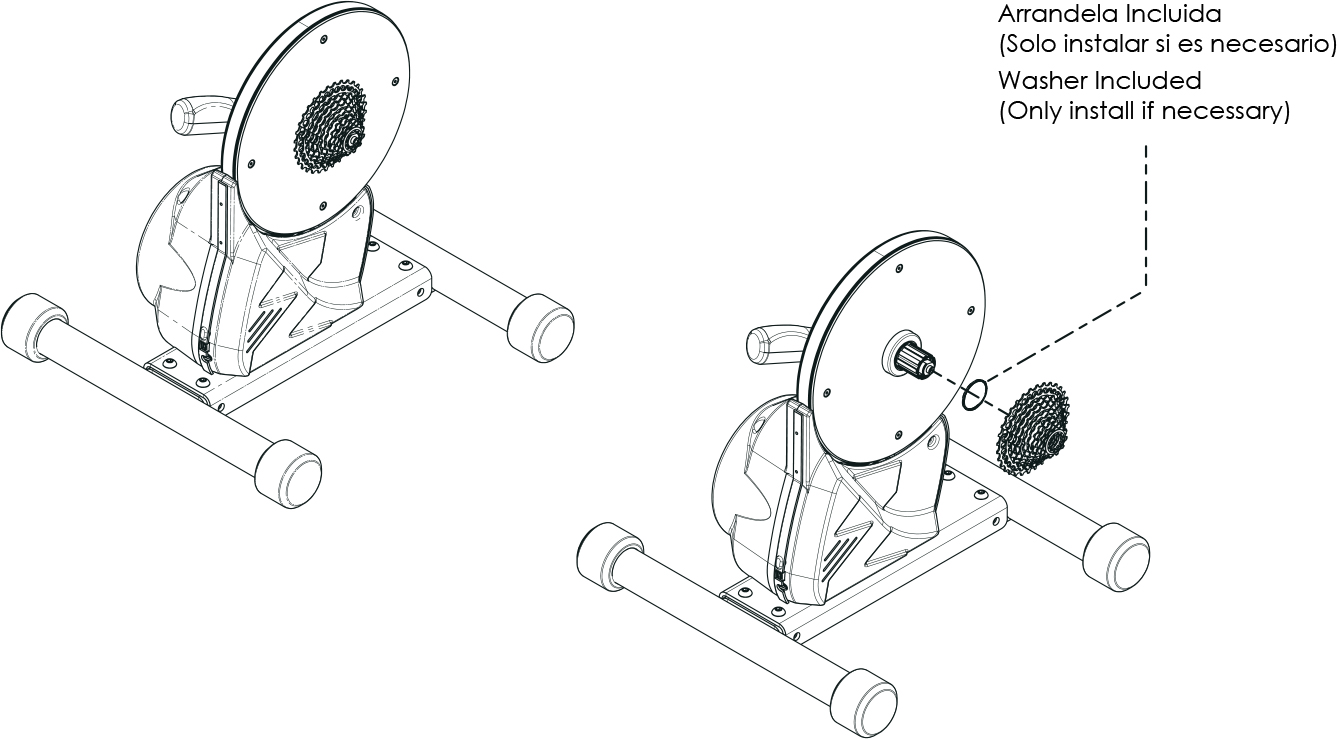

Cassette Installation
* Once you gear the chain on the cassette installed on your ZDrive, you will probably have to adjust the gear change of your bike.

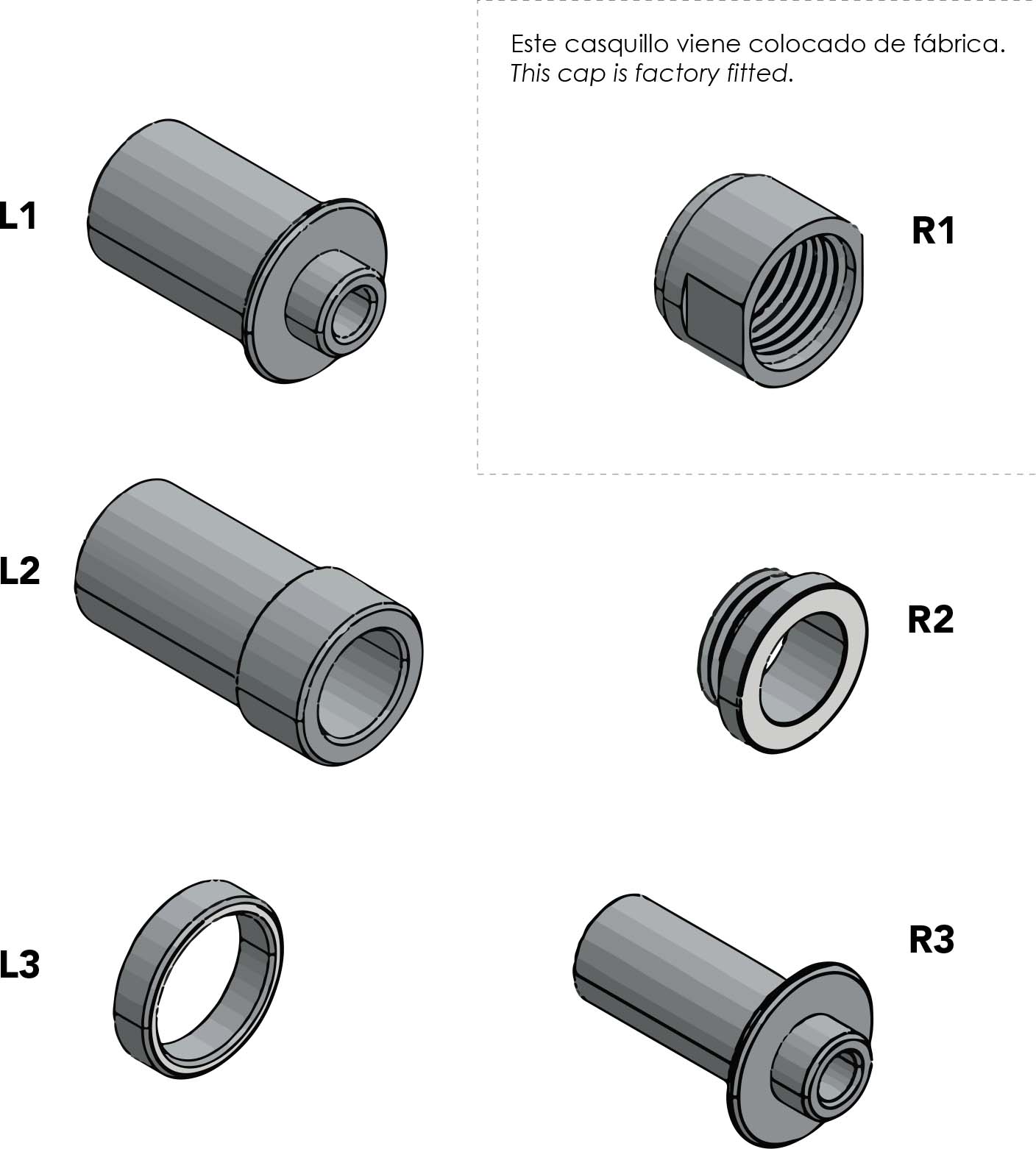

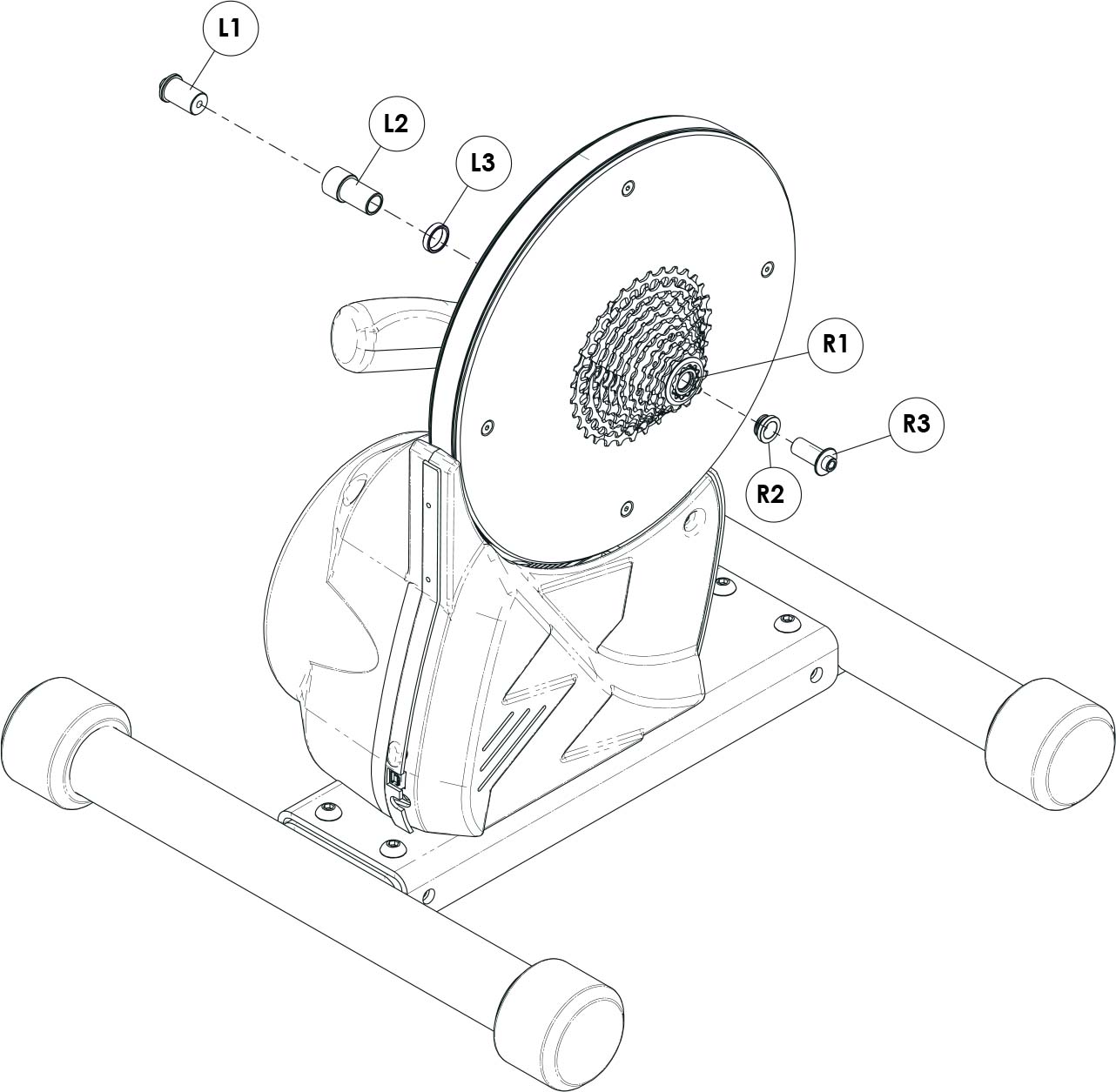

Settings according to closure and width

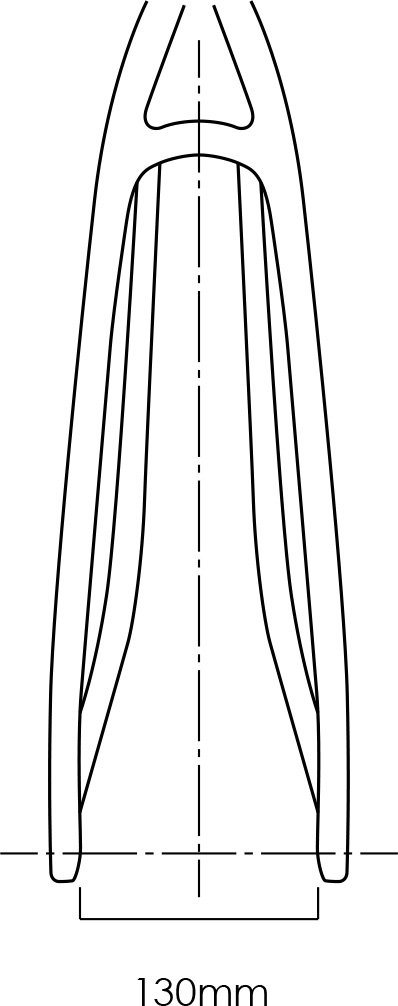

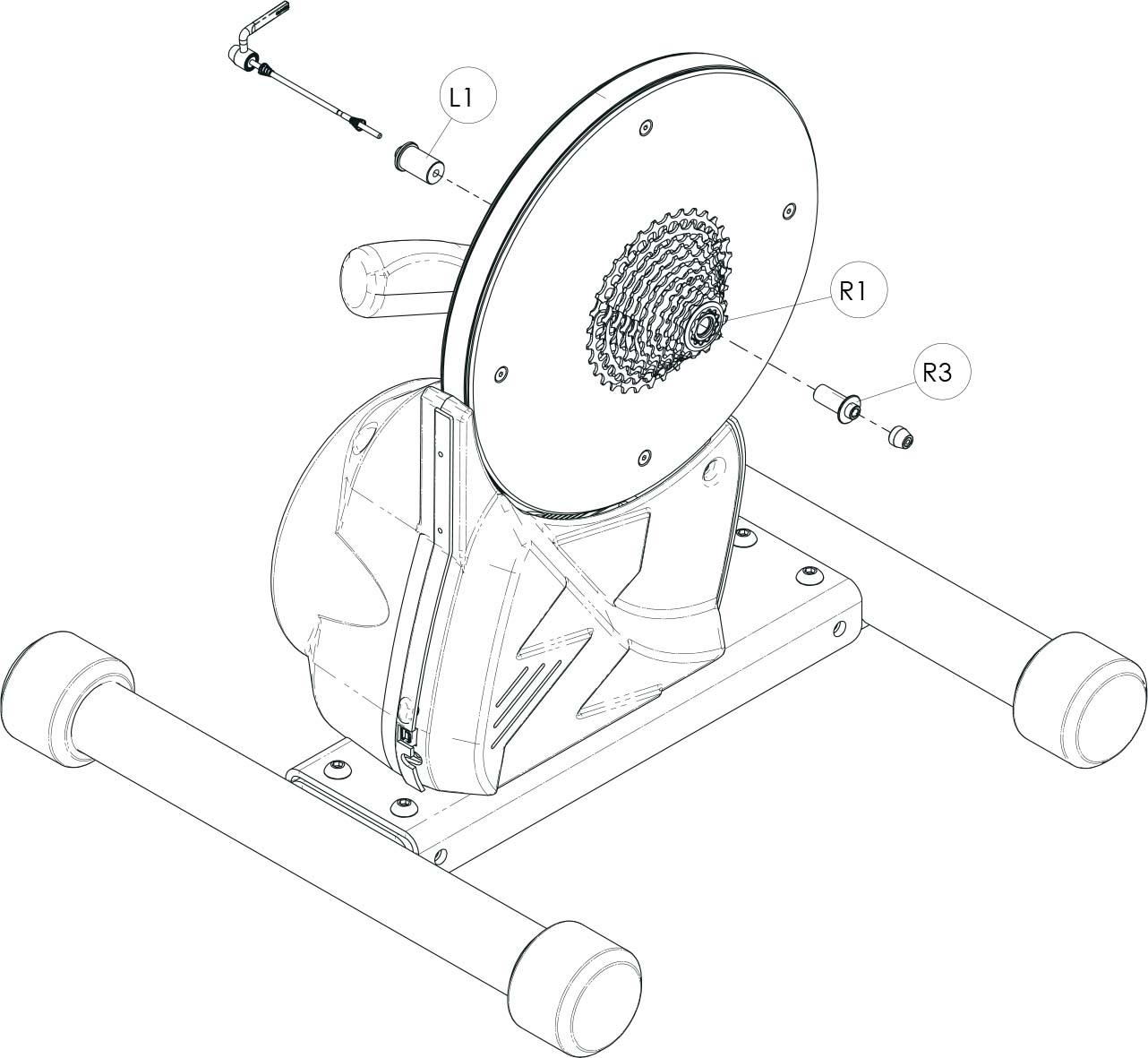

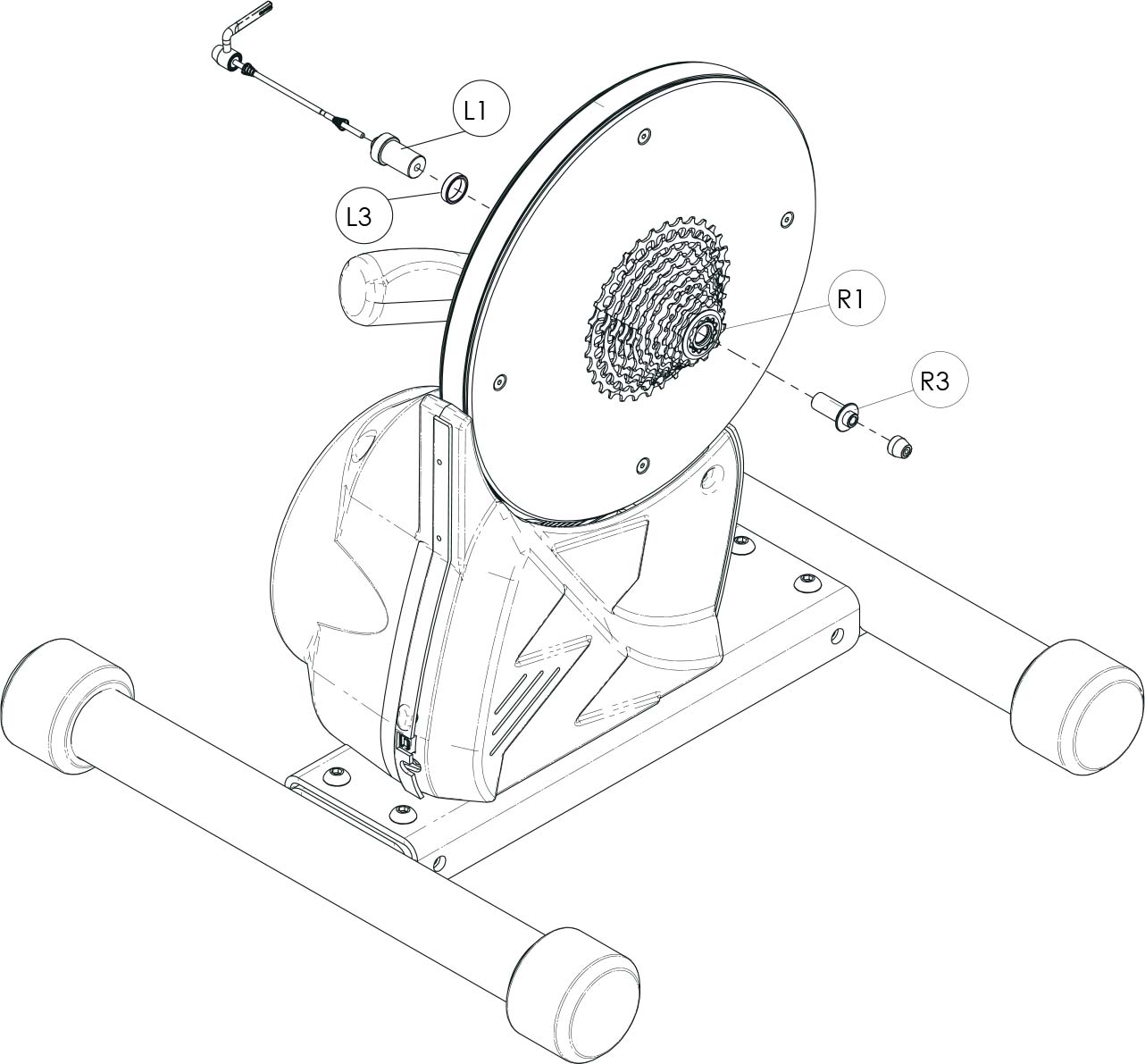

A. 9mm axle quick release and 130mm wide setting. L1 // (R1)+R3

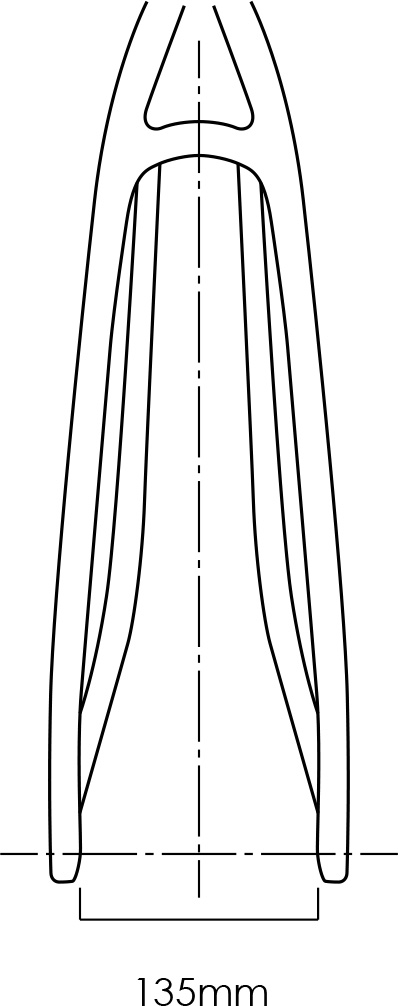

B. 9mm axle quick release and 135mm wide setting. L1+L3 // (R1)+R3

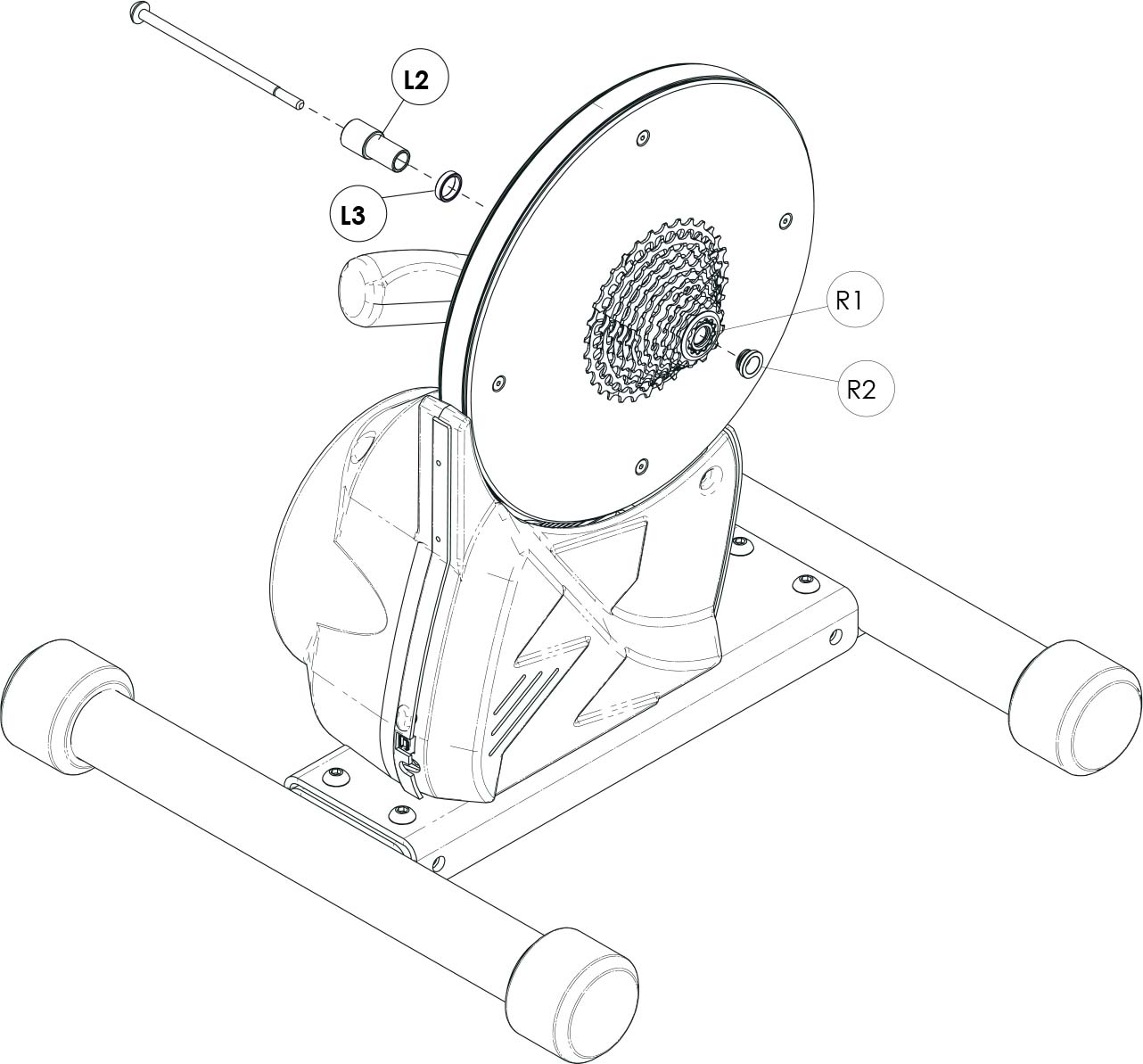

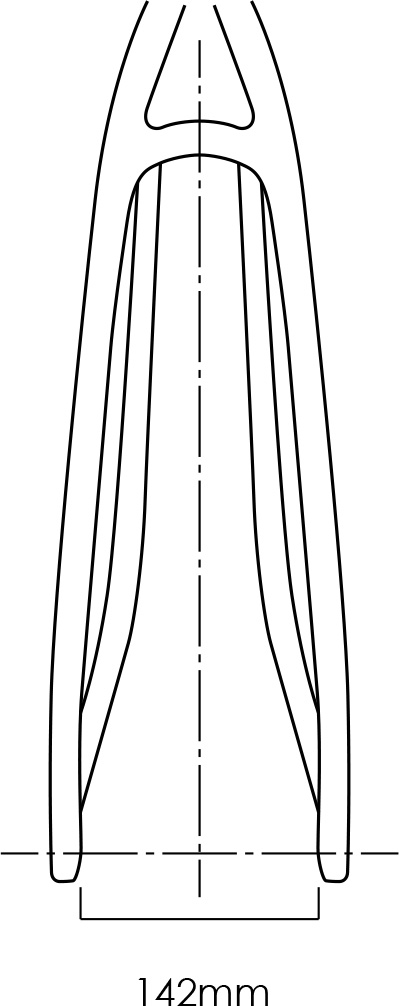

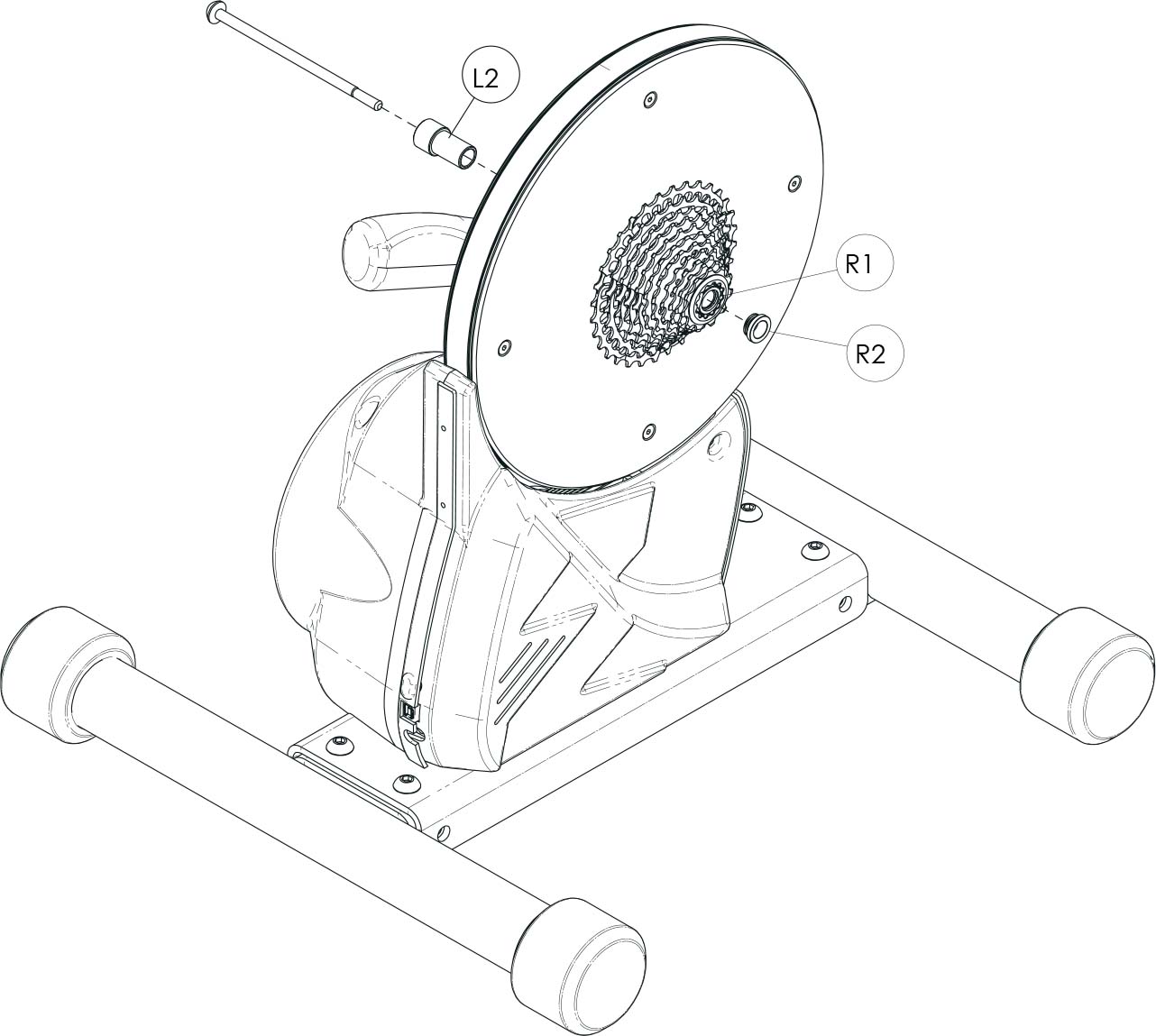

C. 12mm axle quick release and 142mm wide setting. L2 // (R1)+R2

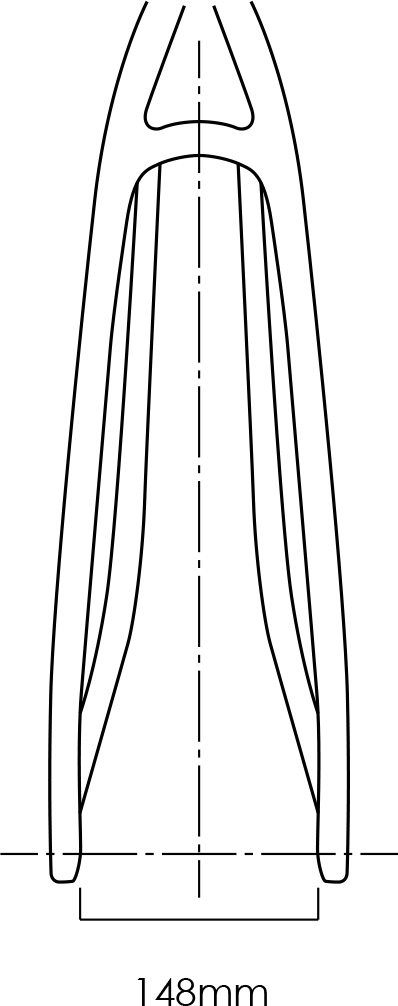

D. 12mm axle quick release and 148mm wide setting. L2+L3 // (R1)+R2
